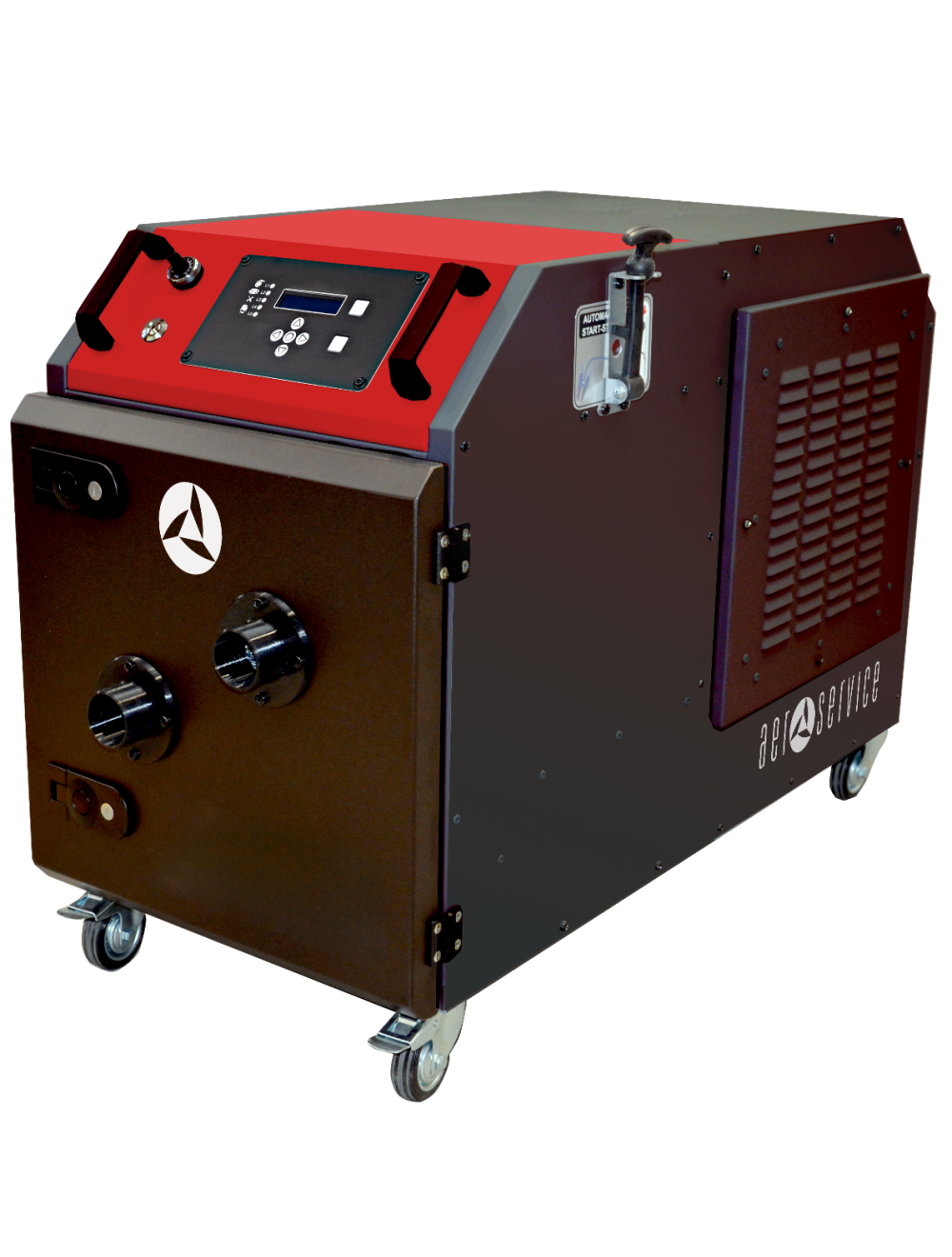

DOT - Self-cleaning filter unit for fume torches
Von 4.600,00 €
Zu 4.600,00 €
In stock
Applications
MIG MAG
MIG MAG PULSATO
MMA SALDATRICI ELETTRODO
TIG
Use
Hi-vac extraction of welding fumes in applications with welding torches with integrated fume extraction
High-vac filter unit for intensive use.
Digital control panel with language selection, hour-meter, alarm log and clogged filter alarm.
3 filter stages: spark arrestor, cartridge filter, active carbons
Automatic filter cleaning system by compressed air.
Automatic Start&Stop function.
Inverter for fine adjustment of the air flow capacity.
Steady extraction performance thanks to the automatic control of the air flow.
Certifications
Packing
High-vac filter unit for intensive use.
Digital control panel with language selection, hour-meter, alarm log and clogged filter alarm.
3 filter stages: spark arrestor, cartridge filter, active carbons
Ecological materials: the Sintexx Plus filter media represents the best compromise between performance and product life, with 20-30% less filtering surface with respect to other solutions. Without PTFE!
Automatic filter cleaning system by compressed air.
Automatic Start&Stop function.
Inverter for fine adjustment of the air flow capacity.
Steady extraction performance thanks to the automatic control of the air flow.
Suitable for dry fumes - not suitable for oily fumes.
Not suitable for the use in potentially hazardous areas.
ACCESSORIES
Intakes Ø 40 - 50 - 60 mm.
Extraction hose Ø 40 - 50 - 60 mm.
| Verpackung | 60x100x75 cm |
|---|---|
| Verfügbarkeit | Disponibile |
| Technische Angaben |
|
| Specifiche Tecniche TEST | Questo è un test di Dynamica, il contenuto non sarà visibile in frontend. |
| Anwendung | MIG MAG, MIG MAG PULSATO, MMA SALDATRICI ELETTRODO, TIG |
| Anwendungen | Saldatura |
| Konformität | CE, UKCA |
| Abscheidegrad | M >99% |
| Stromspannung | 400V |
| Produkte | DOT |
