AER 45 - Pneumatic portable filter unit for welding fumes
€1,870.00
Availability:
In stock
SKU
AER45C00A0A00
Applications
MIG MAG
PULSE MIG MAG
MMA STICK ELECTRODE
TIG
Use
Extraction of welding fumes
Available

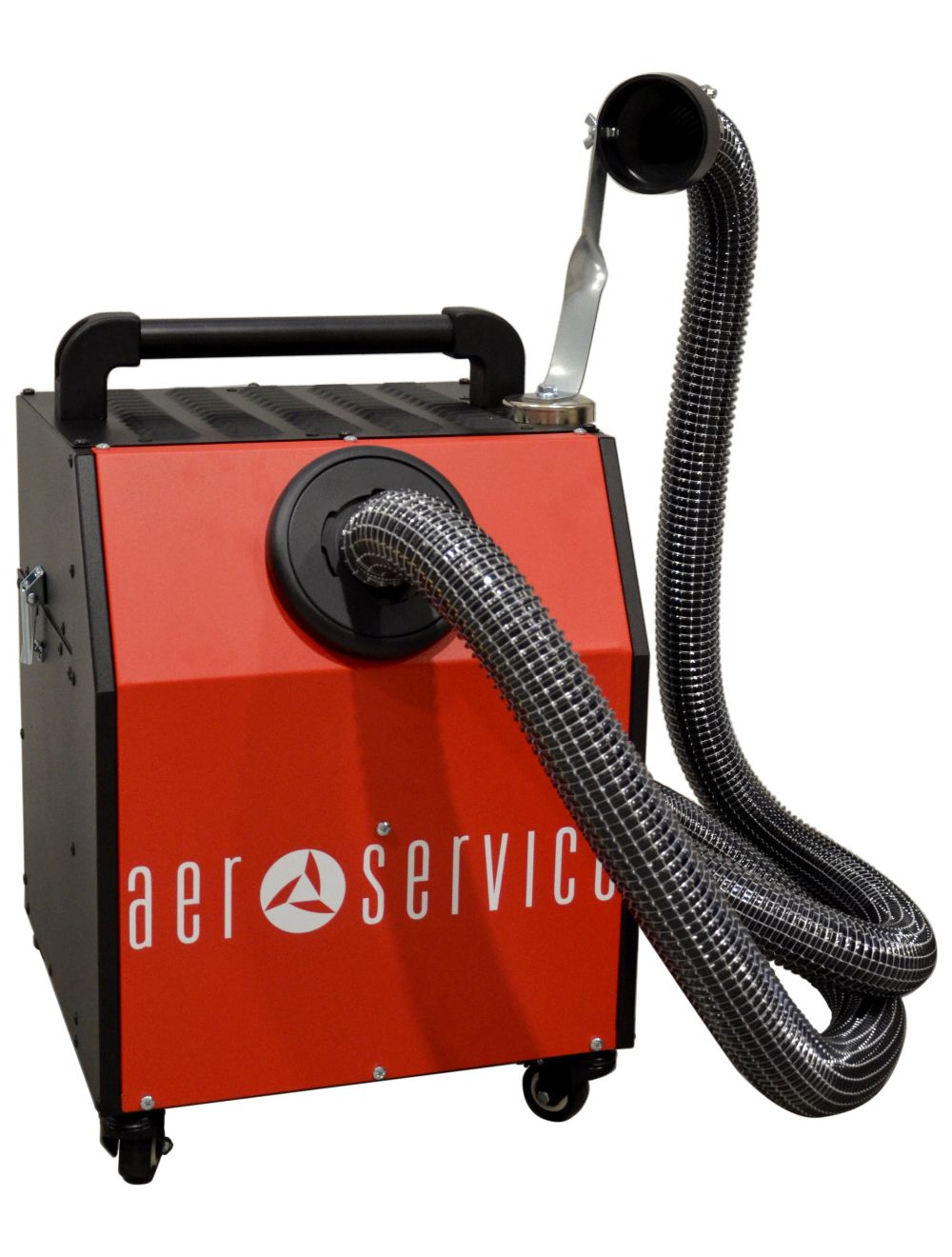

The pneumatic portable filter unit AER 45 (vacuum multi-nozzle) allows extraction of welding dry fumes with low-medium concentration of pollutants and sporadic use.
Filtration efficacy: M >99%.
AER 45 is provided with a flex hose + plastic nozzle + magnetic positioner.
Pneumatic - suited for ATEX zone 22.
Certifications
Packing
Packaging volume 40x40x60 cm
COD: AER45C00A0A00
Sturdy and resistant to occasional shocks, the unit is enough light for an easy movement.
The filter section consists of a metallic spark arrestor filter, a cartridge filter in class BIA "M" and an active carbons filter (1,5 kg).
| Packaging | 40x40x60 cm | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Availability | Available | ||||||||||||||||
| Technical features |
|
||||||||||||||||
| Applications | MIG MAG, PULSE MIG MAG, MMA STICK ELECTRODE, TIG | ||||||||||||||||
| Applications | Welding | ||||||||||||||||
| Conformities | CE, UKCA | ||||||||||||||||
| Filtration efficacy | M >99% | ||||||||||||||||
| Voltage | 110V | ||||||||||||||||
| Products | AER 201 |
| Ø tubo flessibile mm | Lunghezza tubo - mm |
Dimensioni cm |
Consumo aria litri/min |
| 50 | 2000 | 40x40x60 h | 730 |
| Capacità aspirante m3/h | Efficienza filtrazione % | Rumorosità (db) A | Peso kg |
| 110 | 99 | 76 | 20 |
It is possible to download the following technical sheets:
